GRH has nine groups of gear pump series with a displacement range of 0.16-199cc/r, which can meet the needs of most popular working conditions.
Displacement : 22-89cc/r, single to multiple
Axial clearance automatic compensation function
Precision machining
Reliable quality and stable performance
Specification
| Displacement
(ml/r) |
22 | 26 | 34 | 39 | 43 | 51 | 60 | 70 |
| L3/L4(mm) | 80 | 83 | 88.5 | 92.5 | 95 | 101 | 107.5 | 114.5 |
| L(mm) | 128.5 | 131.5 | 137 | 141 | 143.5 | 149.5 | 156 | 163 |
| L1(mm) | 65.5 | 67 | 69.8 | 71.8 | 73 | 76 | 79.3 | 82.8 |

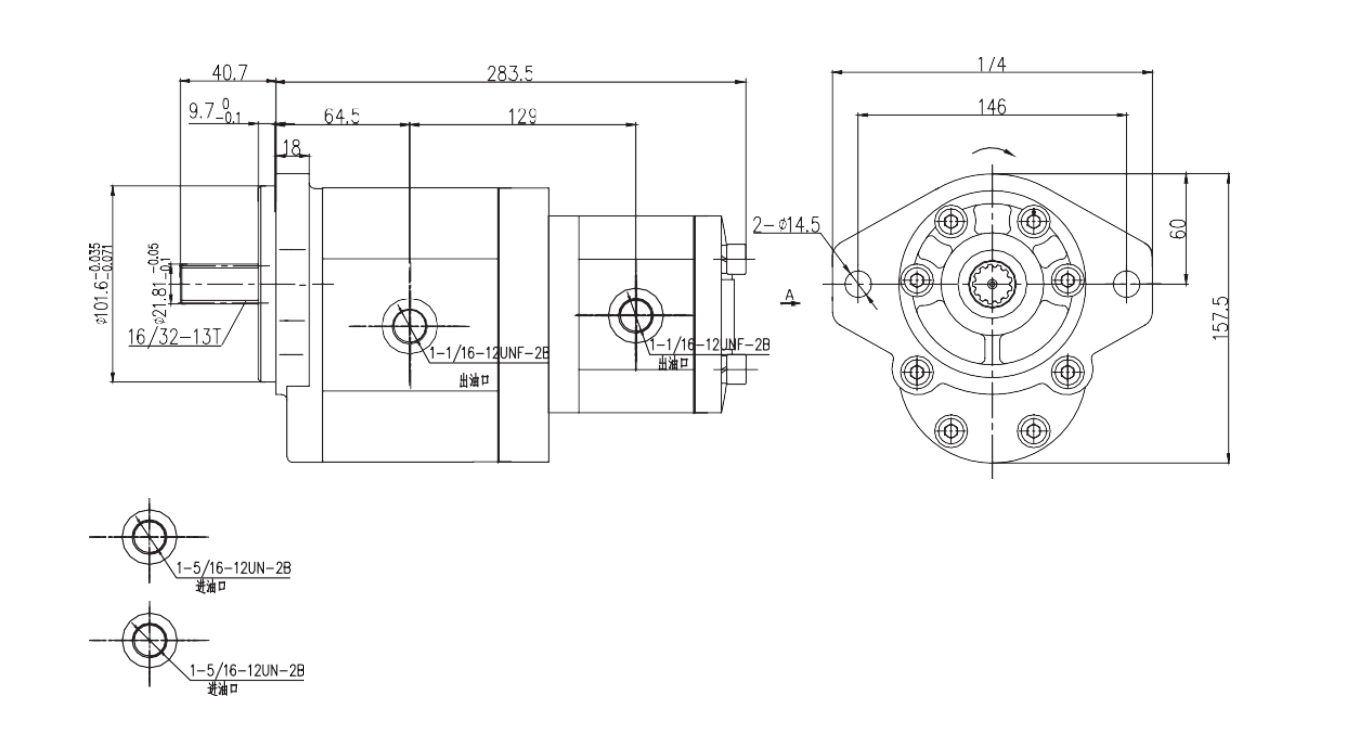

Dimensions
3PF series gear pump provides a large flow of hydraulic output to the system, which can be used for large machinery and equipment. Commonly used in concrete pump trucks, truck cranes, concrete mixers, etc.
Application
