GRH has nine groups of gear pump series with a displacement range of 0.16-199cc/r, which can meet the needs of most popular working conditions.
Displacement : 22-89cc/r, single to multiple
Axial clearance automatic compensation function
Precision machining
Reliable quality and stable performance
Specification
| Model | Displacement
(ml/r) |
Pressure(bar) | Speed(r/min) | L | L1 | L2 | B2 | ?D1 | T1 | L3 | B3 | ?D2 | T2 | |||
| Rated | Max | Rated | Max | Min | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 3APF22F32 | 22 | 200 | 250 | 2000 | 3000 | 400 | 130.3 | 65.3 | 52.4 | 26.2 | 27 | 3/8-16UNC-2B | 26.2 | 47.6 | 19 | 3/8-16UNC-2B |
| 3APF26F32 | 26 | 200 | 250 | 2000 | 3000 | 400 | 133.3 | 66.8 | ||||||||
| 3APF34F32 | 34 | 200 | 250 | 2000 | 3000 | 400 | 138.8 | 69.6 | ||||||||
| 3APF39F32 | 39 | 200 | 250 | 2000 | 3000 | 400 | 142.8 | 71.6 | ||||||||
| 3APF43F32 | 43 | 200 | 250 | 2000 | 2800 | 400 | 145.3 | 72.8 | ||||||||
| 3APF51F32 | 51 | 200 | 250 | 2000 | 2400 | 400 | 151.3 | 75.8 | ||||||||
| 3APF60F36 | 60 | 180 | 230 | 1500 | 2800 | 400 | 157.8 | 79.1 | 58.7 | 28.4 | 33 | 7/16-14UNC-2B | 26.2 | 52.4 | 27 | |
| 3APF70F36 | 70 | 180 | 200 | 1500 | 2500 | 400 | 164.8 | 82.5 | ||||||||
| 3APF78F36 | 78 | 160 | 200 | 1500 | 2300 | 400 | 171 | 85 | ||||||||
| 3APF89F36 | 89 | 140 | 180 | 1500 | 2000 | 400 | 176 | 88 | ||||||||

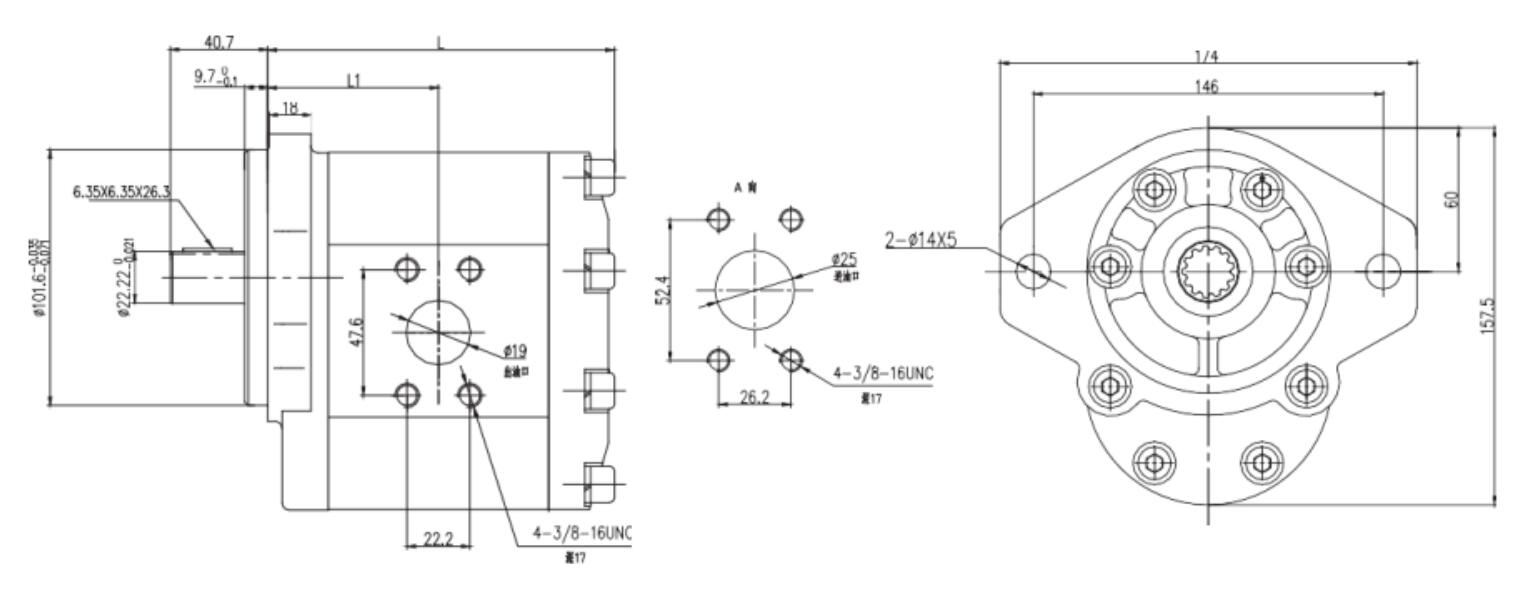

Dimensions

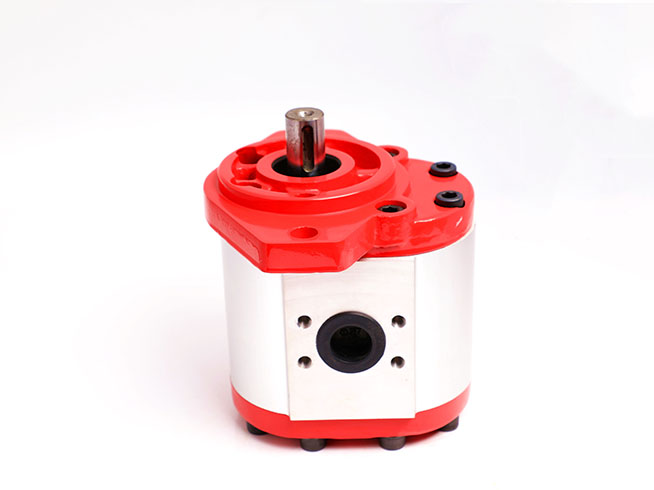

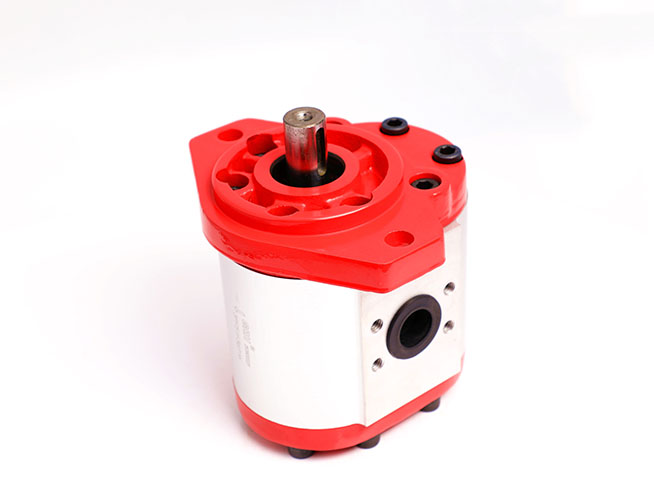

3PF series gear pump provides a large flow of hydraulic output to the system, which can be used for large machinery and equipment. Commonly used in concrete pump trucks, truck cranes, concrete mixers, etc.
Application
平臺_副本.jpg)
_副本-2.jpg)
GRH,design and manufacture high-quality hydraulic components and system solutions.
