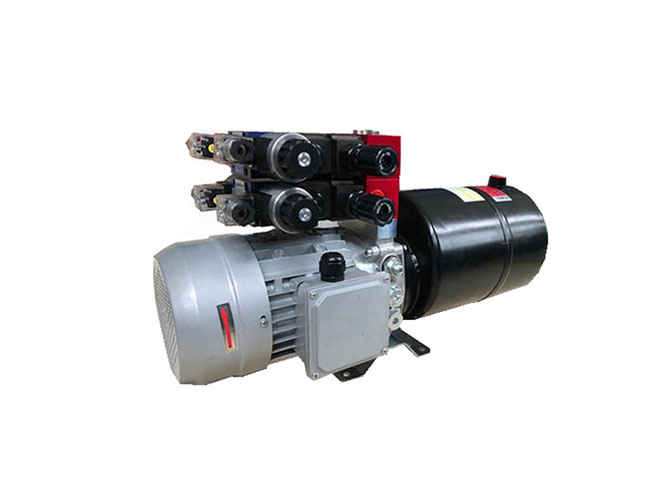

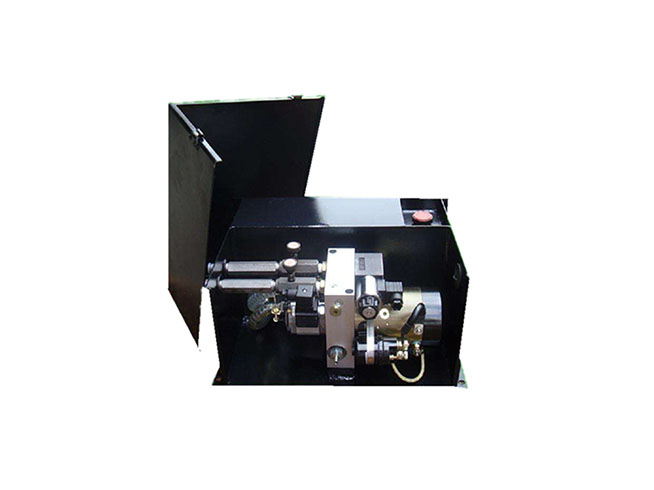

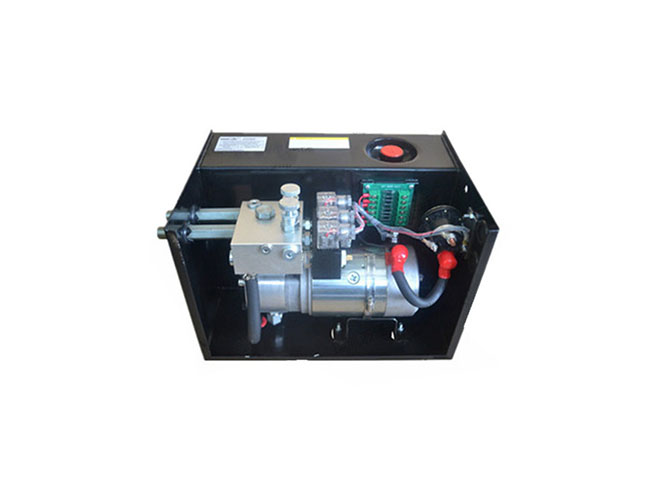

GRH has a few hundred kinds of power units for different applications, which are compactly integrated with high-pressure gear pumps, AC motors, hydraulic valves, oil tanks and other components, which can be driven by controlling the start, stop, rotation, and reversal of hydraulic valves of the power source. End mechanism movement. This product provides lifting, opening and closing functions for the tail and tail lift , the box-type combination is convenient for transportation and installation.
? Customization design
? Compatible with complex hydraulic system
? Compact structure, low noise, high efficiency and energy saving
? Self-made quality core components, stable and reliable
Specification
| Model | Motor | Discp(cc/r) | Tank Cap.(L) | Pressure(MPa) | Installation | Port Size |
| DC-F15-2.1/F-2.0/12/**-9H-A | 12V2.0KW2500RPM | 2.1 | 9 | 20 | Vertical | G1/4 |
| DC-F15-2.1/F-2.2/24/**-9H-A | 24V2.2KW2500RPM |

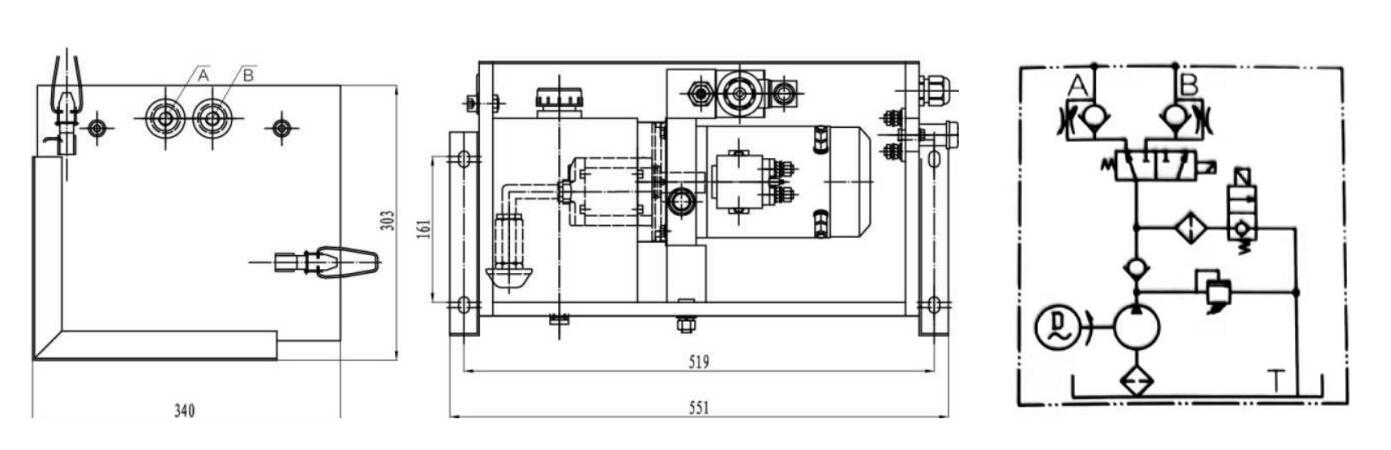

Dimensions
GRH power unit can be customized according to customer requirements. A variety of functions can be integrated in the system, which is widely used in the tail lift and tail gate, docking bridges, electric drive aerial work platforms, stackers, lifting platform, lifting pole, etc.
Application
平臺_副本.jpg)
