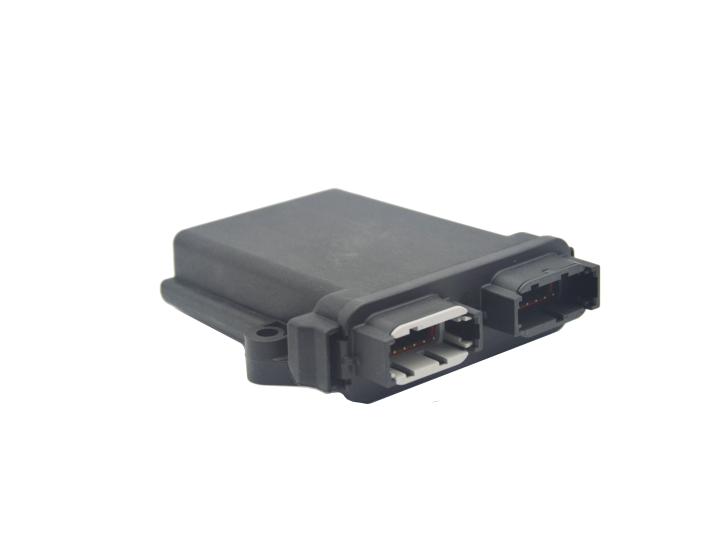

HHC-24A is a general controller product suitable for most complex working conditions and construction machinery industry High stability, flexible port configuration capabilities and excellent cost performance, to provide ideal solutions for a variety of industrial and construction machinery applications. The typical application case is used as a sensing controller to realize an active safety technology for safe driving by collecting a series of signals such as seat sensor, seat belt sensor, weight sensor and height sensor installed in the driving seat. Compliance with the relevant specification requirements of TSG 81-2022 the Safety Technical Regulations for Special Motor Vehicles in Field (Factory).
Characteristic
Technical Parameter
| Function | Parameter |
| Processor | 32 bits,at 72 MHz |
| Program Space (FLASH) | 64KB |
| Data Space (RAM) | 20KB |
| Working voltage | 9V~32V |
| Continuous working current | 8~10A@24V (determined by the power supply cable) |
| No-load current | 10mA@24V |
| Mechanical size(LxWxH mm) | 133*119*38 |
| Install | Two mounting holes are fixed(o8mm) |
| Weight | 234g |
| Working temperature | -40℃~+85℃ |
| Storage temperature | -40℃~+125℃ |
| Levels of protection | IP65 |
| Communication description of
CAN interfa ce) |
1 CAN interface,supporting CAN2.0B. 10 Kbits/s～1Mbits /s(default setting:250 Kbits/s) |
| IO port | Input 10,output 10,total I020 |
| Supporting electrical connection | DTM13-12PA-12 PB-R008,sheath DTM 06-12SA
and DTM 06-12 SB |
Technical Parameter
| Test?Item | Test?Standard | Test?Performance |
| EMC | ISO7637
GB/T 17619-1998 |
? Road vehicles-Electromagnetic harassment caused by conduction and coupling |
| Limit of electromagnetic radiation immunity of motor vehicle electronics assembly | ||
| Environment | GB/T 28046.2-2011 standard 4.2 | ?Product operating voltage range/DC power supply voltage |
| QC/T 413-2002 standard 3.1.4 | ||
| GB/T 28046.2-2011 standard 4.3 | ? Overvoltage test | |
| GB/T 28046.2-2011 standard 4.7 | ? Reverse voltage test | |
| GB/T 28046.2-2011 standard 4.10 | ? Open circuit test,short circuit protection test | |
| GB/T 28046.2-2011 standard 4.11 | ? Voltage resistance test | |
| GB/T 28046.2-2011 standard 4.12 | ? Insulation resistance test | |
| GB/T 28046.3-2011 standard 4.1 | ? Vibration test | |
| GB/T 28046.4-2011 standard 5.1.1 | Thermocycling | |
| GB/T 28046.4-2011 standard 5.1.2 | ||
| GB/T 28046.4-2011 standard 5.2 | ? Temperature gradient test | |
| GB/T 28046.4-2011 standard 5.3 | ? Temperature cycle test | |
| GB/T 28046.4-2011 standard 5.5 | ? Salt-resistant fog test | |
| GB/T 28046.4-2011 standard 5.6 | ? Hot and humid cycle test | |
| GB/T 28046.4-2011 standard 5.7 | ? Steady state hot and humid test |
Performance Testing
| Test?item | Port | Default?setting | Other | Remarks |
| A1 | 1 | POWER+ | Power positive pole | |
| A2 | 2 | DI09 | Input high level is valid | |
| A3 | 3 | DOLO1 | Low edge output | |
| A4 | 4 | DI02 | Input high level is valid | |
| A5 | 5 | DIO3 | ||
| A6 | 6 | DI04 | ||
| A7 | 7 | DI05 | ||
| A8 | 8 | DI06 | ||
| A9 | 9 | DI07 | ||
| A10 | 10 | DI08 | ||
| A11 | 11 | 5Vout | CAN-L | |
| A12 | 12 | CAN-H | ||
| B1 | 13 | DI01 | Dl input high level is valid | |
| B2 | 14 | DO01 | ||
| B3 | 15 | DO02 | ||
| B4 | 16 | DO03 | ||
| B5 | 17 | DO04 | ||
| B6 | 18 | DO05 | ||
| B7 | 19 | DO06 | ||
| B8 | 20 | DO07 | ||
| B9 | 21 | DO08 | ||
| B10 | 22 | DO09 | ||
| B11 | 23 | Al/PI | ||
| B12 | 24 | GNDI | Power negative pole |
Port Description
| Type | Quantity | Available?port | Description |
| DO | 9 | 14、15、16、17、18、19、20、21、22 | ?Forward switch output,0~3A,output short circuit and overload protection,high side output |
| DOL | 1 | 3 | ?Low side output,0~3A,output short circuit protection |
| DI | 9 | 2、4、5、6、7、8、9、10、13 | Switch volume input,high level effective,overvoltage protection High level gate limit voltage:high>3.5V Low-level gate limit voltage:low<1.5V |
| Al | 1 | 23 | ■Analog quantity input Voltage range:0~5V Sampling accuracy:12bit |
| PI | 1 | 23 | Pulse input,1 Hz～10 kHz,high level effective high level gate limit voltage:high>3.5V Low-level gate limit voltage:low<1.5V |
Electrical Interface
Outline Dimension
Typical Application
Application
