Specification
| Type | GT160 | GT200 | GT250 | GT315 | |
| Displacement (cm3/rev) | 161,1[9.83] | 201,4[12.29] | 251,8[15.36] | 326,3[19.90] | |
| Max. Speed,
(RPM) |
Cont. | 622 | 620 | 496 | 382 |
| Int.* | 775 | 752 | 601 | 461 | |
| Max. Torque
(daNm) |
Cont. | 47[4160] | 59[5220] | 73[6460] | [95[8410] |
| Int.* | 56[4960] | 71[6285] | 88[7790] | 114[10090] | |
| Peak** | 66[5840] | 82[7260] | 102[9030] | 133[11770] | |
| Max. Output
(kW) |
Cont. | 26,5[36] | 33,5[45] | 33,5[45] | 33,5[45] |
| Int.* | 32[43] | 40[54] | 40[54] | 40[54] | |
| Max. Pressure Drop
(bar) |
Cont. | 200[2900] | 200[2900] | 200[2900] | 200[2900] |
| Int.* | 240[3480] | 240[3480] | 240[3480] | 240[3480] | |
| Peak** | 280[4050] | 280[4050] | 280[4050] | 280[4050] | |
| Max. Oil Flow
(lpm) |
Cont. | 100[26] | 125[33] | 125[33] | 125[33] |
| Int.* | 125[33] | 150[39.6] | 150[39.6] | 150[39.6] | |
| Max. Inlet Pressure
(bar) |
Cont. | 210[3050] | 210[3050] | 210[3050] | 210[3050] |
| Int.* | 250[3600] | 250[3600] | 250[3600] | 250[3600] | |
| Peak** | 300[4350] | 300[4350] | 300[4350] | 300[4350] | |
| Max. Return Pressure with Drain Line
(bar) |
Cont. | 140[2030] | 140[2030] | 140[2030] | 140[2000] |
| Int.* | 175[2540] | 175[2540] | 175[2540] | 175[2500] | |
| Peak** | 210[3050] | 210[3050] | 210[3050] | 210[3000] | |
| Max. Starting Pressure with Unloaded Shaft
(bar) |
10[150] | 10[150] | 10[150] | 10[150] | |
| Min. Starting Torque
(daNm) |
At max. press. drop Cont. | 34[3010] | 43[3800] | 53[4690] | 74[6550] |
| At max. press. drop Int.* | 41[3630] | 52[4600] | 63[5580] | 89[7880] | |
| Min. Speed***,
(RPM) |
10 | 9 | 8 | 7 | |
| Weight(kg) | GT | 20[44.1] | 21,5[47.4] | 21[46.3] | 22[48.5] |
| For rear ports
+0,40 |
GTS | 15[33.1] | 15,5[34.2] | 16[35.3] | 17[37.5] |
| Type | GT400 | GT500 | GT630 | GT725 | |
| Displacement (cm3/rev) | 410,9[25.06] | 523,6[31.95] | 631,2[38.52] | 724,3[44.2] | |
| Max. Speed,
(RPM) |
Cont. | 304 | 238 | 197 | 172 |
| Int.* | 368 | 289 | 234 | 209 | |
| Max. Torque
(daNm) |
Cont. | 108[9560] | 122[10800] | 130[11500] | 127[11240] |
| Int.* | 126[11150] | 137[12125] | 148[13100] | 147[13010] | |
| Peak** | 144[12745] | 160[14160] | 176[15580] | 175[15490] | |
| Max. Output
(kW) |
Cont. | 30[40] | 26,5[36] | 24,3[33] | 20,2[27] |
| Int.* | 35[47] | 30[40] | 27,5[37] | 26,8[36] | |
| Max. Pressure Drop
(bar) |
Cont. | 180[2610] | 160[2320] | 140[2010] | 120[1740] |
| Int.* | 210[3050] | 180[2610] | 160[2320] | 140[2010] | |
| Peak** | 240[3480] | 210[3050] | 190[2760] | 165[2395] | |
| Max. Oil Flow
(lpm) |
Cont. | 125[33] | 125[33] | 125[33] | 125[33] |
| Int.* | 150[39.6] | 150[39.6] | 150[39.6] | 150[39.6] | |
| Max. Inlet Pressure
(bar) |
Cont. | 210[3050] | 210[3050] | 210[3600] | 210[3050] |
| Int.* | 250[3600] | 250[3600] | 250[4350] | 250[3600] | |
| Peak** | 300[4350] | 300[4350] | 300[2000] | 300[4350] | |
| Max. Return Pressure with Drain Line
(bar) |
Cont. | 140[2000] | 140[2000] | 140[2500] | 140[2000] |
| Int.* | 175[2500] | 175[2500] | 175[3000] | 175[2500] | |
| Peak** | 210[3000] | 210[3000] | 210[3000] | 210[3000] | |
| Max. Starting Pressure with Unloaded Shaft
(bar) |
10[150] | 10[150] | 10[150] | 10[150] | |
| Min. Starting Torque
(daNm) |
?At max. press. drop Cont. | 84[7435] | 95[8410] | 95[8410] | 95[8410] |
| At max. press. drop Int.* | 97[8585] | 106[9380] | 110[9740] | 115[10180] | |
| Min. Speed***,
(RPM) |
6 | 5 | 5 | 5 | |
| Weight(kg) | GT | 23[50.7] | 24[52.9] | 23,5[51.8] | 24,5[54.0] |
| For rear ports
+0,40 |
GTS | 18[39.7] | 19[41.9] | 18,5[40.8] | 19,5[43.0] |

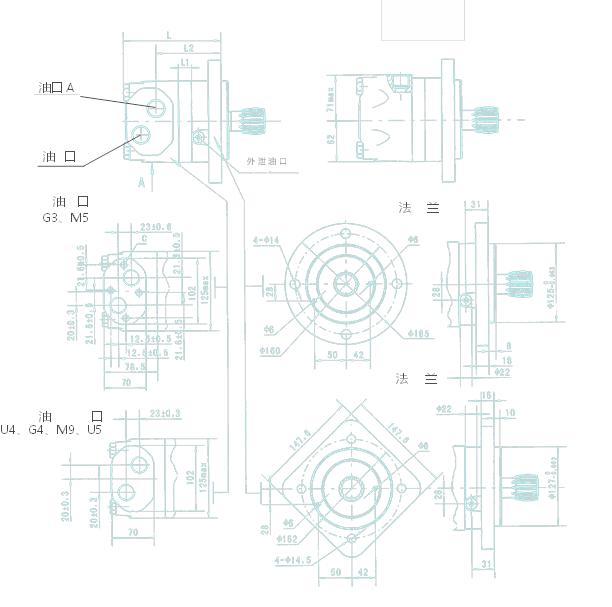

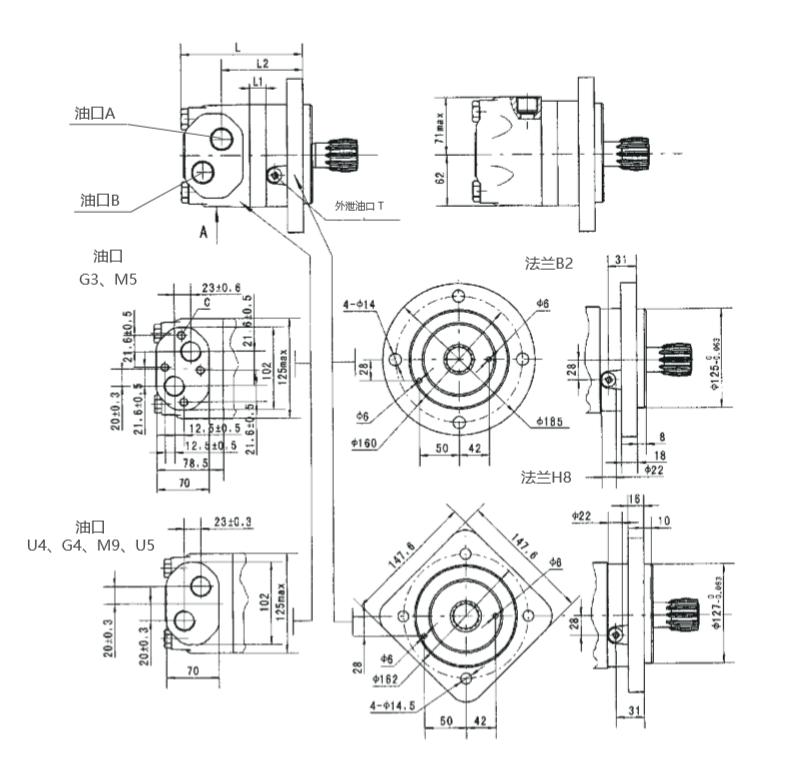

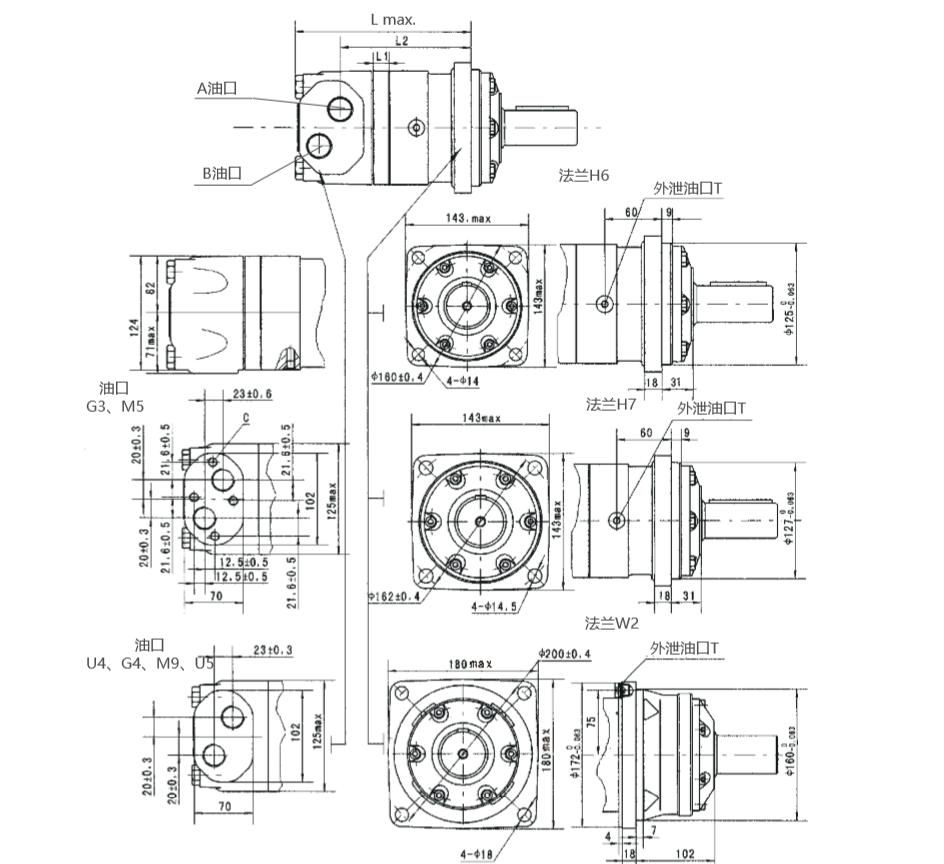

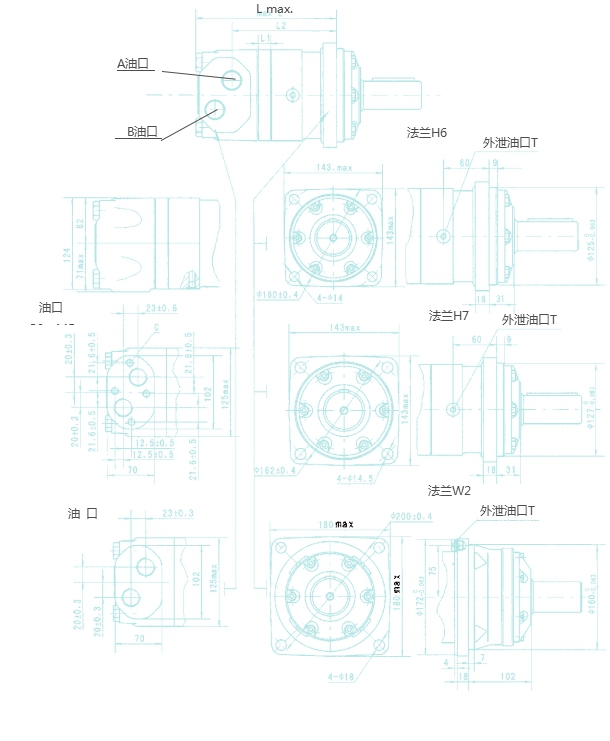

Dimensions
The disk distribution structure makes the motor distribution accuracy high, and the automatic compensation ability after wear is strong, ensuring high volumetric efficiency and long motor life, ensuring stable motor speed and stable load speed characteristics
