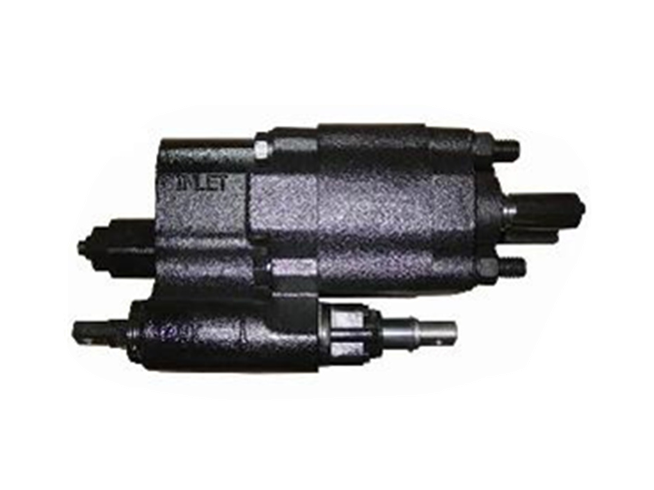

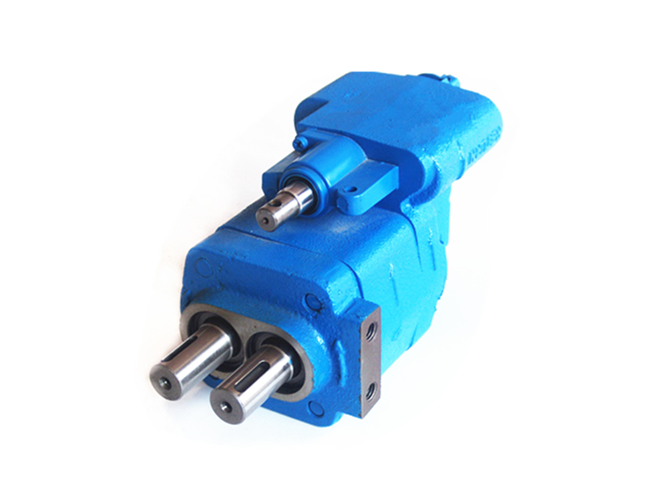

GRH has nine groups of gear pump series with a displacement range of 0.16-199cc/r, which can meet the needs of most popular working conditions.
? Displacement 25-105cc/r, single
? Axial clearance automatic compensation function
?Precision machining
? Reliable quality and stable performance
Specification
| Model | Teeth Width(in) | Displacement
(ml/r) |
Pressure(bar) | Speed(r/min) | Input Power | Features | ||
| Rated | Peak | Peak | Min | （Kw） | ||||
| C101-20-MS/AS-R | 2 | 85 | 175 | 210 | 2400 | 600 | 78 | Double
Shaft |
| C101-25-MS/AS-R | 2-1/2 | 105 | 175 | 210 | 2400 | 600 | 89 | Double
Shaft |
| C102-20-MS/AS-L | 2 | 85 | 175 | 210 | 2400 | 600 | 7 | Single
Shaft |
| C102-25-MS/AS-L | 2-1/2 | 105 | 175 | 210 | 2400 | 600 | 89 | Single
Shaft |
| G101-07-MS/AS-R | 3/4 | 25 | 175 | 210 | 2400 | 600 | 27 | Double
Shaft |
| G101-20-MS/AS-R | 2 | 65 | 175 | 210 | 2400 | 600 | 70 | Double
Shaft |
| G102-15-MS/AS-L | 1-1/2 | 50 | 175 | 210 | 2400 | 600 | 89 | Single
Shaft |
| G102-20-MS/AS-L | 2 | 65 | 175 | 210 | 2400 | 600 | 70 | Single
Shaft |

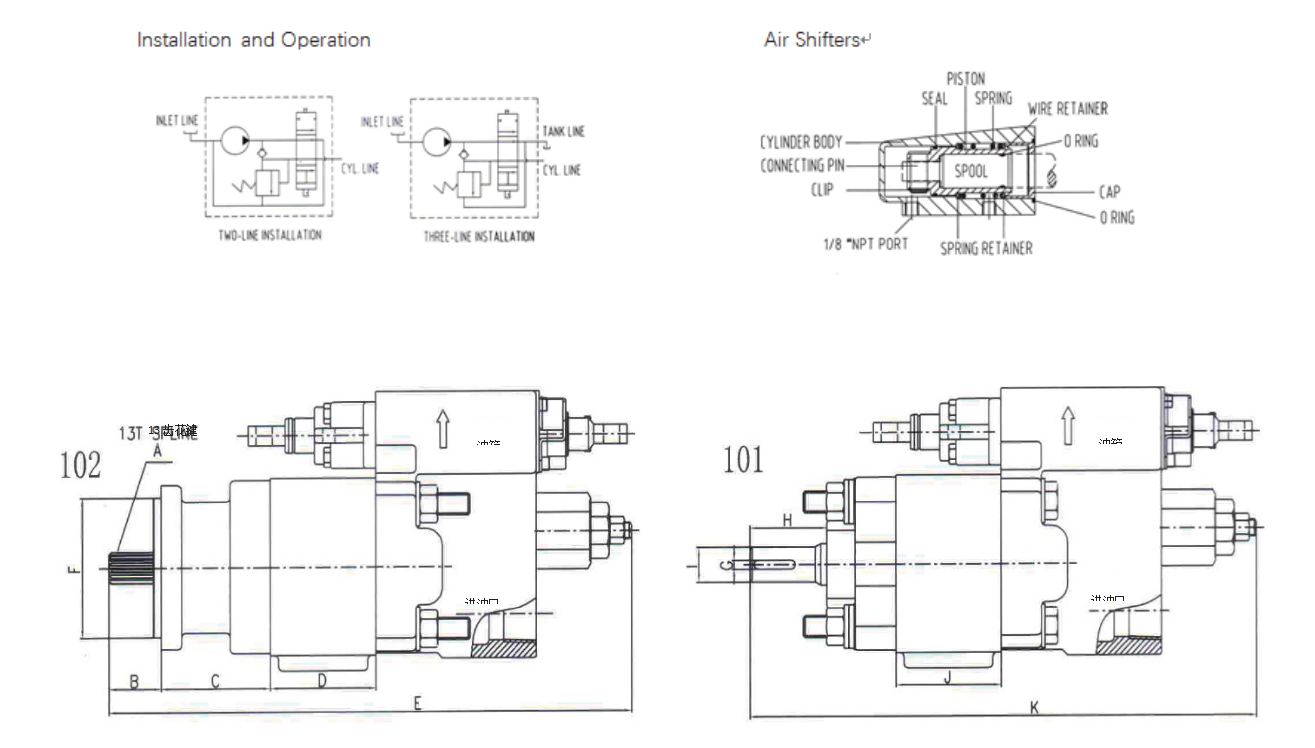

Dimensions
This pump is designed to provide power for various single-acting cylinders, and it is easy to install and has a variety of oil circuit forms.It adopts floating side plate, multi-bearing support, simple structure, reliable operation, impact resistance and convenient maintenance.Mostly used in vehicles such as dumpers.
Application
_副本-2.jpg)
平臺(tái)_副本.jpg)
