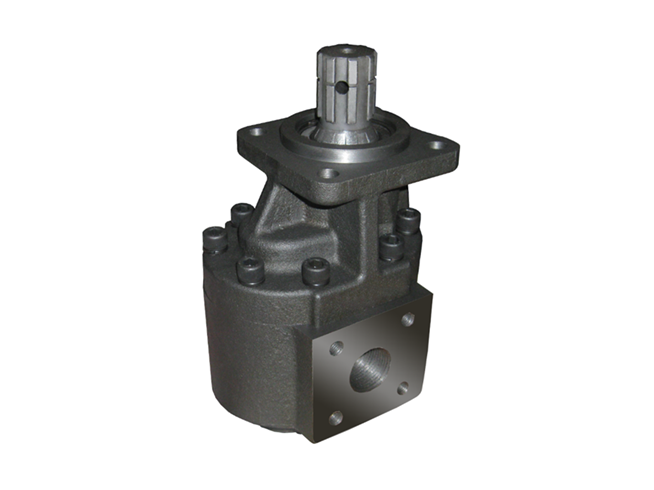

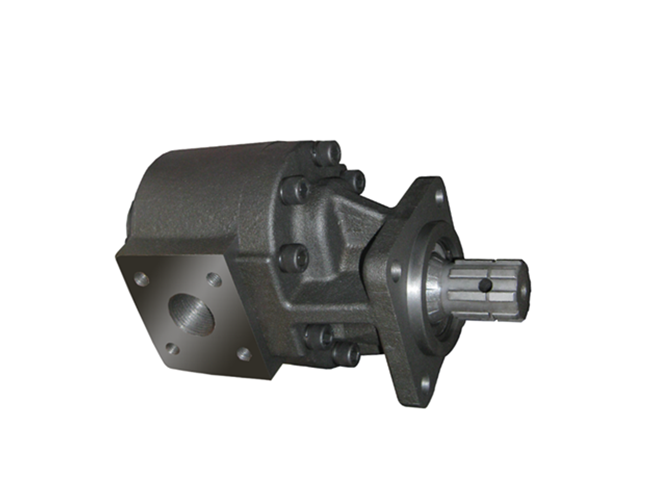

GRH has nine groups of gear pump series with a displacement range of 0.16-199cc/r, which can meet the needs of most popular working conditions.
Displacement : 22-89cc/r, single to multiple
Axial clearance automatic compensation function
Precision machining
Reliable quality and stable performance
Specification
| Mode | Displacement
(ml/r) |
Pressure(bar) | Speed(r/min) | A(mm) | B(mm) | D(mm) | d (mm) | Weight
(kg) |
|||
| Rated | Max | Rated | Max | Min | |||||||
| 3CPF43L03H27 | 43 | 210 | 300 | 2000 | 3000 | 300 | 171 | 115.5 | G1 | G3/4 | 12.8 |
| 3CPF51L00H27 | 51 | 210 | 300 | 2000 | 3000 | 300 | 177 | 118.5 | G1 | G1 | 13.2 |
| 3CPF61L00H27 | 61 | 210 | 300 | 200 | 3000 | 300 | 183.6 | 121.8 | G1 | G1 | 13.6 |
| 3CPF82L11H27 | 82 | 210 | 300 | 200 | 3000 | 300 | 196 | 128 | G1-1/4 | G1 | 14.1 |

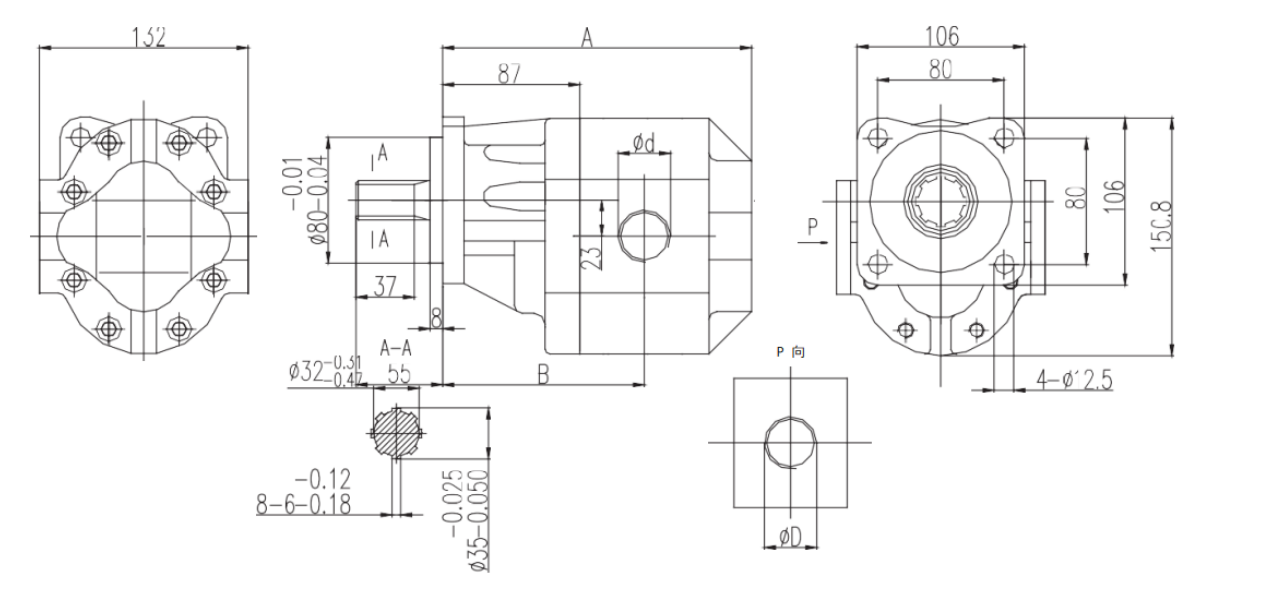

Dimensions
3PF series gear pump provides a large flow of hydraulic output to the system, which can be used for large machinery and equipment. Commonly used in concrete pump trucks, truck cranes, concrete mixers, etc.
Application
