GHR has 1, 2, 2.5, 3, 3, 5, series gear motors, and the displacement ranges from 1.1 to 115ml/r. It has strong anti-contamination performance, simple structure and high reliability; it has the advantages of automatic compensation of axial clearance, wear resistance and longer service life.
Displacement range 1.1-8.5ml/r
Higher carrying capacity and longer service life
With automatic compensation of axial clearance
Specification
| Displacement(ml/r) | 1.1 | 1.6 | 2.1 | 2.7 | 3.2 | 3.7 | 4.2 | 4.8 | 5.8 | 6.5 | 8 |
| L1 | 33 | 35 | 36 | 37 | 38 | 39 | 40 | 41 | 43 | 44 | 47 |
| L | 75 | 78 | 79 | 81 | 83 | 85 | 87 | 89 | 93 | 95 | 101 |

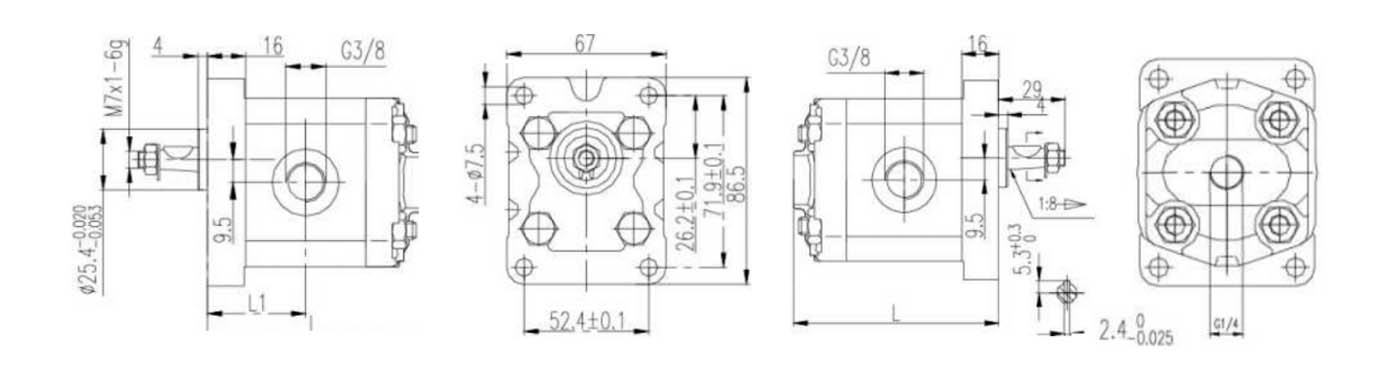

Dimensions
The 1MF series gear motor drives the gears with hydraulic oil, outputs power from the shaft end, and is mostly used for fan cooling.
Application
GRH,design and manufacture high-quality hydraulic components and system solutions.
